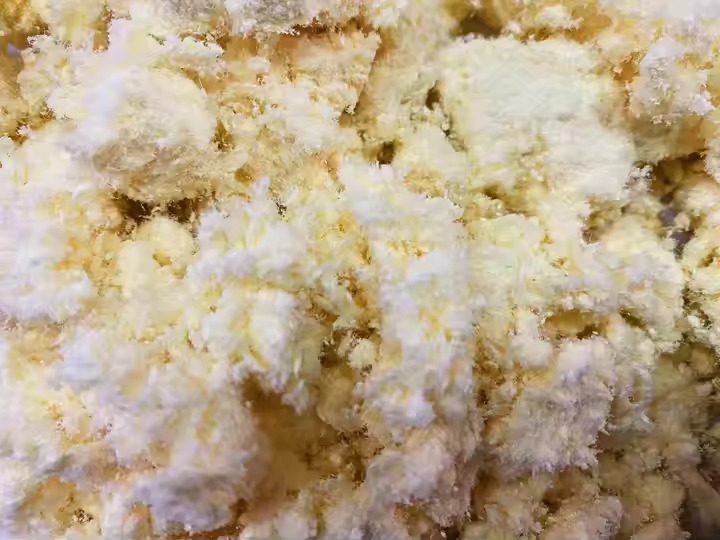

Pulp

Color aramid fiber

Pulp

Our Aramid Yarn Cloth is an ideal solution for the pulp and paper industry, providing exceptional durability, strength, and heat resistance in demanding environments. When used in pulp production, the aramid yarn cloth enhances the performance and longevity of filtration systems, screens, and other components that come into contact with abrasive materials or extreme temperatures.

Due to its high tensile strength and resistance to wear, Aramid Yarn Cloth helps increase the efficiency and lifespan of equipment involved in the pulp processing stages. Its excellent chemical resistance ensures that the cloth maintains its integrity when exposed to harsh chemicals commonly used in the pulp and paper industry, such as acids, alkaline solutions, and bleaching agents.

The cloth’s ability to withstand high temperatures makes it perfect for use in pulp drying and other heat-intensive processes. Additionally, its lightweight yet strong construction allows for better handling, longer-lasting durability, and less maintenance downtime, making it a cost-effective and reliable choice for pulp manufacturers.

Whether used for filtration, protection, or reinforcement, Aramid Yarn Cloth offers versatility and superior performance, making it an essential material in the pulp industry.

Type C.S.F S.S.A Moisture content Average fiber length KAJAANI T.G.A (in N2) Packaging
ml m2 /g % mm ℃ kg/bag kg/plt
PT-H050 250-350 7.0-10.0 3.0-7.0 0.60-0.80 540-555 5.0 130
PT-H070 320-420 7.0-10.0 3.0-7.0 0.70-1.00 540-555 5.0 130
PT-H100 350-450 6.5-9.5 3.0-7.0 0.55-0.95 540-555 5.0 130
PT-H300 350-400 5.5-9.0 3.0-7.0 0.40-1.10 540-555 5.0 130
PT-H700 450-650 5.0-9.0 3.0-7.0 0.40-1.10 540-555 5.0 130
Test method TAPPI-227 ISO 9277 TAPPI-412 TAPPI-271 – –

■ C.S.F ; Canadian Standard Freeness
■ S.S.A ; Specific Surface Area (Micrometrics ASAP 2020 Physisorption Analyzer)
■ Average fiber length ; Metso automation KAJAANI FS-300TM Fiber Length-weighted average length
■ T.G.A ; Thermo Gravimetric Analysis
■ TAPPI ; Technical Association of the Pulp and Paper Industry

Features

Density:The density of the pulp is 1.41 g/cm3~1.42g/cm3, slightly smaller than PPTA filament.
Specific surface area: the surface of the meal is plush, microfibrils are clustered, hairy feathers are abundant, fibres are split into pinpoints along the axial direction, the original fibrillation is high, so the specific surface area is large, between 5m2/g ~15m2/g, which greatly improves the grip of the pulp;
Average length: the pulp has a certain distribution of fibre length and diameter, with an average length of 0.5mm ~ 2mm;
Compatibility: the surface amino content of the pulp is more than 10 times that of the filament, which has a good affinity with amide based composite resins, and at the same time can form hydrogen bonds with the matrix at the interface of the pulp, providing an
enhanced compounding effect;
Toughness: the pulp has very good toughness, no matter how intense the mixing process will not break, will not reduce the length to diameter ratio of the pulp, which is incomparable to carbon fibres and other fibres

Application

Military protection

Personal Protection

Composite materials

Composite materials

Communication Cable

Communication Cable

Mobile Phone Case

Mobile Phone Case
